Digital multimeter

Infra-Red Printer

• Compatible with the full range of Hand Held Gas Analysers

• The Gas Analyser sends results via an integral IR transmitter to the remote printer

Relay removal pliers straight patternAllows easy removal of all types of relays without risking breaking them

Relay removal pliers bent pattern 60-Allows easy removal of all types of relays without risking breaking them

Assortment-of 23 tools for releasing electrical connectors

Assortment of 94 car testing connectors for use with main diagnostic tools

Voltage tester

Memory saver 12 VPrevents data stored by computer on board cars from getting lost during maintenance jobs or battery replacement.

Mini thermal printer for tester item 1498TB/12- Mini printer can be directly connected to tester - Allows test results to be printed

Combination contact/non-contact digital tachometer

Digital automotive multimeter

Amperometric clamp and digital multi-meter

AC/DC amperometric clamp 80ASpecifically designed to measure low current leakage or absorption values on vehicles

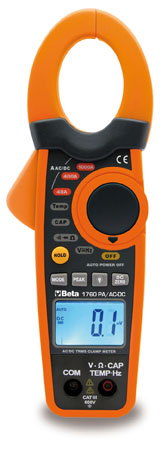

Amperometric clamp and digital multimeterSPECIFICATIONS - Allows DC and AC measurements up to 1000 A - Integrated multimeter function

Industrial digital multimeter accurate and sturdy in a 6-mm co-moulded shell with antislip shockproof outer rubber part

Shockproof: tested for falls up to 2 metres

Waterproof IP67

• Water protection IP67
• Protection up to 1000V
• Tested for accidental falls up to 2 m
• Protected inlets
• Autoranging
• Large direct reading display, backlit, blue
• K type temperature probe (included)
• Self-power down
• Rubber terminal base for enhanced operating comfort
• Double insulated terminals, 1000V, 1 m long
• Supplied in a soft case
• CAT IV 600V/ CAT III 1000V
• Actual effective value TRUE RMS

375 g

Measuring range Base accuracy
AC/DC voltage 110mV – 600V ±0.8% - ±2% rdg
AC/DC current 110μA – 10A ±1.5% - ±2% rdg
Resistance 110Ω – 40MΩ ±1.2% - ±2.5% rdg
Capacity 11nF – 40mF ±5% - ±10% rdg (up to 11mF)
Frequency 1100Hz – 110 MHz ±1.2% - ±1.5% rdg
Temperature -32°C – +1000°C ±3% - ±5% rdg
Diode test, 3V DC ±10% rdg
Continuity test <30 Ω -

- Thickness: 1 mm.
- Length: 130 mm.
Weight: 10 g.

Professional Cordless Circuit Tester

• Suitable for testing DC circuits from 3v to 28v

• No ground wire or clips required

• Unique V-groove needle accessory for wire piercing

• Three-way voltage indication - Illuminates LED, buzzes and vibrates on contact with live wire

• Solid state lamp for longer lasting performance

• Safe to use on Engine Management systems - e.g. ECM’s, Sensors, Transducers etc

• Supplied with long-life alkaline batteries

Inteliprobe

• Circuit & Continuity Tester

• Ideal for locating bad earths, breaks in continuity, and short circuits

• Intelligent Auto Probe for testing:

6v – 24v circuits

- Energize Components

- Polarity test

- Continuity test

• Short Circuit Protection

• High precision non-contact thermometer

• Dual Laser beams are targetted on a single spot – ensures optimum distance from object for accurate temperature measurement

• Temperature range: -50° to 550°C

• Accuracy: +/- 1.5% at 550°C

Features:

- Backlit LCD display

- MAX temperature display

- Automatic data hold & display resolution

- High and Low temp alarm setting

• Ideal for Aircon, Cylinder temp, Brake temp, Cooling System, Exhaust Cat etc

Wireless Electronic Stethoscope Kit -“ChassisEAR”

The Wireless Electronic Stethoscope is designed for the detection of vehicle noises e.g. rattles, squeaks and air ingress under load, during a road test and for the diagnosis of a wide variety of potential faults e.g. wheel bearings, CV joints, differentials, transmission, injectors, alternators, water pumps, AC compressors and many more.

• Can be used on cars, vans, trucks, buses etc as there are no cable length issues to overcome

• Consists of Receiver Unit, 4 x Transmitter Units (4 channels), 4 pick-up leads, pick-up fixing straps, headphones, batteries, instruction manual & storage case.

• Pick-up clamps can be attached to many different parts of the vehicle in order to amplify the sounds made under load and in actual driving conditions.

N.B. Due care and consideration should be taken of driving conditions and regulations when operating the ChassisEAR™ on the road.

Spare Parts:

• 30047501 Transmitter 1

• 30047502 Transmitter 2

• 30047503 Transmitter 3

• 30047504 Transmitter 4

• 30047506 Pick-Up Lead and Clamps (Set of 4)

Sensor Activation - Sensor Checking - Sensor Replacement - All in One Single Tool !

Reprogrammable Clone Valve Features:

• Able to reprogram “Clone” valves wirelessly without using a PC or docking station
• Fully compliant for EU frequency valves using 433Mhz & not just USA valves on 315Mhz
• Approved for use with Schrader, Alligator & Beru / HUF EU frequency reprogram valves
• Step by step guidance for valve cloning
• Able to copy old valve ID or create new ones
• Monthly updates to add extra coverage as valve makers add new vehicle applications
• Sensor replacement procedures
• Built-in sensor checking – no exciter tool required
• Test feature allows for checking operation of sensors, and sensor batteries
• Includes OEM sensor part number for reference & OEM valve component references
• Sensor reprogramming information
• Includes sensor replacement, technical and tyre rotation procedures
• Print test results / file test results & update the software / applications (via PC)
• Displays procedures for new sensors to be synchronised with vehicle TPMS ECU (pairing)

TPMS PLUS also includes the following additional features:

• Connects to TPMS ECU via EOBD diagnostic lead (Containing full multiplexing functionality)
• Sensor reprogramming via the EOBD socket
• Sensor & TPMS ECU fault code reading / deletion

Spare Parts
30661100 - AC Mains Power Adaptor
306615V2SUB - TPMS PLUS Tool Annual Subscription (Year 2 onwards)
30660200 - EOBD Cable
30660170 - SD Card Reader
30660270 - USB Cable (male to male)

Sonoscope

• Super sensitive sound detector, with a built-in diaphragm which amplifies noise, for assisting in the diagnostic process

• Robust metal and plastic construction, with 550mm hose and 290mm probe

• Helps to diagnose many vehicle problems, including:

- Noisy water pumps

- Faulty wheel bearings

- Alternator and power steering problems

- Air conditioning compressor bearings

- Camshaft and crankshaft knocks

- Noisy tappets etc

High Temp Exhaust Probe - Stainless Steel

• For use during extended tests, or with high temperature exhausts

• Supplied as standard with 5 Gas models

RPM Clamp

• For direct RPM measurement

• Supplied as standard with OIML Class 1 models

- Measures internal resistance of batteries.
- Automatic calibre.
- Voltmeter: AC / DC 0 --> 600 V.
- Ammeter: AC / DC 0 --> 400 mA.
- Ohmmeter: 0 O --> 40 MO.
- Continuity and LED test.
- Temperature measurement.
- Cyclic ratio: 5% --> 99% .
- Cam angle.
- Tachometer.
- Frequency meter: 1 Hz --> 400 KHz.
- Compatible with clip-on ammeter Ref 711A.P500.

Set of adaptors for item 960TP in plastic case

- 20 special tools for the main makers of car radio (Alpine, Blaupunkt, Becker, Grundig, JVC, Pioneer, VDO).
- Multi-make: BMW, Fiat, Ford, Mercedes, Opel, PSA, Renault, VAG.
- Supplied in a plastic pouch showing applications.
