Extra-Long Flexible Adaptor - Ford Zetec / Duratec Extra-Long Flexible Adaptor for use with Petrol Engine Compression Testers - M14 x 158mm for Ford Zetec / Duratec Suitable for use with models : 31400000 / 31400200 or Kit ref : 31400300

560mm Rubber Hose

Gauge Scale: 0 - 60bar / 0 - 860psi

Guage Diameter: 83mm Gauge to DIN16005, DIN16063, BS1780 standards

Supplied in cardboard carton

For inserting and removing dummy glow plugs in difficult to access areas

The only tool available to fully test the compression of all 5 cylinders

• For use with existing Sykes-Pickavant compression test kits to measure cylinder compression on 5 cylinder diesel Land Rover TD5 engines made between 1998 & 2005
• Unique tool that fits in place of original high pressure fuel injector - not the glow plug
• Original injector clamps hold adaptor tightly in place to create gas tight seal

Diesel Engine Compression Test Kit - Common Rail Diesel (CRD)

• Comprehensive test kit specifically designed to cover a wide range of modern CRD diesel injected engines

• Checks engine compression under cranking conditions

• Enables cylinder access through dummy injector and glow plug adaptors

• Built-in pressure relief valve enables repeat tests without dismantling

• Contents: Supplied in plastic case with foam insert

- 60bar Diesel Compression test gauge - 15 x Dummy Glow Plugs for CRD engines

- CRD Dummy Injector and Clamps for applications where it is easier to remove the injector

- Supplied with vehicle applications list

Spare Parts:

• 31400500 - Service Kit for compression gauge

• 01421500 - Seals and Washers for dummy injectors

• 31420100 - Gauge & Hose Assembly

• 31433670 - Lock Nut

• 31427870 - Injector End

• A range of short sets of adaptors for Diesel Compression Testing to complement existing kits
• Suitable for all previous models of SP Diesel Compression Testers
• Each set contains the appropriate adaptors for a particular engine series, which often cover more than one manufacturer
• Applications for the full range of adaptor sets are provided with each short set

Applications:
• Citroën 1.4, 1.6, 2.0, 2.2, 2.7HDI
• Fiat Scudo Ulysse 2.0JDT, 2.2JTD, 2.2JTDM
• Ford 1.4, 1.6, 2.0, 2.2TDCI
• Jaguar / Land Rover 2.2, 2.7TD
• Peugeot 1.4, 1.6, 2.0, 2.2, 2.7HDI
• Volvo 1.6, 2.0, 2.4D

Spare Parts:
• 31423170 - M8 x 1.00mm Glow Plug
• 31425270V2 - M10 x 1.00mm Glow Plug
• 31427770V2 - M8 x 1.00mm Glow Plug
• 31428570 - M8 x 1.00mm Glow Plug
• 31421970 - Glow Plug Extension Rod

• A range of short sets of adaptors for Diesel Compression Testing to complement existing kits

• Suitable for all previous models of SP Diesel Compression Testers

• Each set contains the appropriate adaptors for a particular engine series, which often cover more than one manufacturer

• Applications for the full range of adaptor sets are provided with each short set

Applications:

• Citroen 1.4, 1.6, 2.0, 2.2, 2.7HDI

• Fiat Scudo Ulysse 2.0JDT, 2.2JTD, 2.2JTDM

• Ford 1.4, 1.6, 2.0, 2.2TDCI

• Jaguar / Land Rover 2.2, 2.7TD

• Peugeot 1.4, 1.6, 2.0, 2.2, 2.7HDI

• Volvo 1.6, 2.0, 2.4D

Spare Parts:

• 31423170 - M8 x 1.00mm Glow Plug

• 31425270V2 - M10 x 1.00mm Glow Plug

• 31427770V2 - M8 x 1.00mm Glow Plug

• 31428570 - M8 x 1.00mm Glow Plug

• A range of short sets of adaptors for Diesel Compression Testing to complement existing kits
• Suitable for all previous models of SP Diesel Compression Testers
• Each set contains the appropriate adaptors for a particular engine series, which often cover more than one manufacturer
• Applications for the full range of adaptor sets are provided with each short

• Applications:
• Alfa Romeo 1.3JTDM 16V, 1.6JTDM 16V, 1.9JTD 8V, 1.9 JTDM 8V, 1.9JTD/M 16V, 2.0JTDM, 2.4JTD 10V, 2.4JTD/M 20V
• Fiat 1.3MJTD 16V, 1.6JTD, 1.9 JTD/M/DM, 2.0JTDM, 2.3DJTDM, 2.4JTDM, 3.0JTD
• Saab 1.9D, TID1.9D, TTID
• Vauxhall 1.3DTI, 1.3CDTI, 1.9CDTI, 2.0D CDTI

Spare Parts:
• 31421670 - M9 x 1.00mm Glow Plug
• 31421870 - M8 x 1.00mm Glow Plug
• 31423170 - M8 x 1.00mm Glow Plug
• 31425970V2 - M10 x 1.00mm Glow Plug
• 31421970 - Glow Plug Extension Rod

• A range of short sets of adaptors for Diesel Compression Testing to complement existing kits

• Suitable for all previous models of SP Diesel Compression Testers

• Each set contains the appropriate adaptors for a particular engine series, which often cover more than one manufacturer

• Applications for the full range of adaptor sets are provided with each short set

 Applications:

• Alfa Romeo 1.3JTDM 16V, 1.6JTDM 16V, 1.9JTD 8V, 1.9 JTDM 8V, 1.9JTD/M 16V, 2.0JTDM, 2.4JTD 10V, 2.4JTD/M 20V

• Fiat 1.3MJTD 16V, 1.6JTD, 1.9 JTD/M/DM, 2.0JTDM, 2.3DJTDM, 2.4JTDM, 3.0JTD

• Saab 1.9D, TID1.9D, TTID

• Vauxhall 1.3DTI, 1.3CDTI, 1.9CDTI, 2.0D CDTI

Spare Parts:

• 31421670 - M9 x 1.00mm Glow Plug

• 31421870 - M8 x 1.00mm Glow Plug

• 31423170 - M8 x 1.00mm Glow Plug

• 31425970V2 - M10 x 1.00mm Glow Plug

• A range of short sets of adaptors for Diesel Compression Testing to complement existing kits
• Suitable for all previous models of SP Diesel Compression Testers
• Each set contains the appropriate adaptors for a particular engine series, which often cover more than one manufacturer
• Applications for the full range of adaptor sets are provided with each short set

Applications:
• K9K 1.5DCI, F9Q 1.9DCI, D4192T 1.9D - Fitted on Dacia, Nissan, Suzuki, Volvo
• M9R 2.0DCI, M9T 2.3CDTI - Fitted on Nissan, Opel / GM, Renault
• G9T 2.2DCI, Y22DDT 2.2DCI, G9U 2.5DCI, Y25DDTI 2.5DCI - Fitted on Nissan, Opel / GM, Renault

Spare Parts:
• 31421770 - M10 x 1.00mm Glow Plug
• 3142677V2 - M10 x 1.00mm Glow Plug
• 31427470V2 - M10 x 1.00mm Glow Plug (Nissan 1.5DCi)


• A range of short sets of adaptors for Diesel Compression Testing to complement existing kits

• Suitable for all previous models of SP Diesel Compression Testers

• Each set contains the appropriate adaptors for a particular engine series, which often cover more than one manufacturer

• Applications for the full range of adaptor sets are provided with each short set

Applications:

• Glowplug: Ford 1.8DT, TDCI, TDDI, 2.0 16V TDCI,2.0, 2.2, 2.4, 3.2 DDDI

• Dummy Injector: 2.0, 2.2, 2.4 Duratorq Diesel Injector

Spare Parts:

• 31424970 - M10 x 1.00mm Glow Plug

• 31425470V2 - M10 x 1.00mm Glow Plug

• 31428170 - M22 x 1.5mm Dummy Injector

• A starter kit of adaptors and clamping plates for checking compression on both direct and indirect Commercial Diesel Injected Engines
• Suitable for all types of heavy duty diesel engines - Industrial, Plant, Marine, Agricultural

Specification:
• Hose Assembly Length: 560mm
• Gauge Scale Range: 0 - 60 bar, 0 - 860 psi
• Gauge Diameter: 83mm
• Gauge to DIN16005, DIN16063, BS1780 standards
• Contents: (Supplied in plastic case with foam insert)
- Diesel Compression Gauge
- End Adaptors x 3
- Spacers x 5
- Clamp Plates x 2
- Centre Pillar
- Elbow Connector

Spare Parts:
• 31400500 - Service Kit for compression gauge
• 31420100 - Diesel compression gauge
• 01421500 - Seals and Washers for dummy injectors
• 31473070 - Elbow Connector
• 314300-01 - Clamp Plate & Pillar Set
• 314300-02 - End Adaptor Set
• 314300-03 - Spacer Set

• Connects to 3/8” drive air ratchet to replace the hand pump section in 31467500 - Diesel Fuel System Bleeding kit to generate faster flow
• Easily engages with all 3/8” Dr. air ratchets
• Retaining bracket holds pump during use for one-hand operation
• Supplied in plastic case

A comprehensive high quality OEM standard low pressure diesel and petrol pressure kit

Includes:
- Shock protected, fuel resistant dual scale gauge - to 10 bar / 145psi
- Relief valve for safe de-pressurisation
- Vacuum gauge assembly
- Fuel tap and T-connector assembly
- Quick-coupling adaptors and connectors with reinforced hoses and brass fittings
- 4 x Schrader valve connectors

• Latest fittings for Jaguar Land Rover variant engines
• Supplied with easy to follow fitting / application instructions
• Applications include:
Alfa, Audi, BMW, Chrysler, Citroen, Ferrari, Fiat, Ford, GM, Jaguar, Land Rover, Mercedes, Mini, Peugeot, Renault, VW and Volvo

• Helps to diagnose worn oil pumps and engines, faulty oil pressure switches and pressure warning indicators
• Shock protected dual scale gauge, for quick and accurate oil pressure checks
• Permanently oil primed, long flexible hose, enables access to difficult to reach oil switch ports
• Small profile, quick coupling adaptors with built-in shut-off valve for fast secure connection
• Includes oil pressure test gauge c/w 1m oil primed hose and 10 x oil switch port adaptors
• Supplied in plastic case with foam insert

Specification:

• 1m flexible oil primed hose

• Gauge Scale 0 - 10bar, 0 - 150psi

• Gauge Diameter: 80mm

• Gauge to DIN16005, DIN16063, BS1780 standards

Spare Parts:
• 31471170 - R1/8 DIN 2999 Adaptor
• 31471270 - 1/8 x 27 NPT Adaptor
• 31471370 - 1/4 x 18 NPT Adaptor
• 31471470 - 3/8 x 20 UNF Adaptor
• 31471570 - 1/2 x 20 UNF Adaptor
• 31471670 - M10 x 1.0 Adaptor
• 31471770 - M12 x 1.5 Adaptor
• 31471870 - M14 x 1.5 Adaptor
• 31471970 - M16 x 1.5 Adaptor
• 31472170 - M18 x 1.5 Adaptor
• 31473070 - 90° Elbow x 1
• 31470170 - Gauge Assembly

Updated kit now covers Alfa Romo, Fiat, Lancia and new Ford Ka vehicles

• Universal Injection Pressure Test Kit for modern Electronic, Multi-point injection systems
• Shock protected, fuel resistant dual scale gauge – to 10bar / 145psi
• Relief valve for safe depressurisation
• Quick coupling adaptors and connectors

Wide applications range:

S type, 8mm plastic push-in fittings, as used on Alfa, Audi, Citroën, Fiat, Ford, GM, Peugeot, VW etc

Schrader type valve test port adaptors (7/16 & 8mm) as used on Alfa, BMW,
Chrysler, Ferrari, Fiat, Ford, GM, Mercedes, Mini, Volvo etc

Specialist Renault fittings for use on Renault 1.2 / 1.4 / 1.6 Petrol Engines - Clio, Twingo, Kangoo, Extra, Megane, Scenic etc

Supplied in plastic case with foam insert

Optional fittings available to suit older vehicles

Spare Parts:

• 31487100 - Multi-Point Fuel Pressure Test Gauge Assembly (10bar / 145psi)
• 31481500 - Petrol Injection Hose Connector Set
• 31488500 - Quick Connector Set
• 31487370 - T-Connector & Tap Assembly
• 31486370 - Double-ended QR Hose Assembly
• 31481870 - 7/16 Schrader valve connector
• 31481970 - 8mm Schrader valve connector
• 31485770 - M8 right angled Schrader valve connector

Ford EECIV Flexible Adaptor

Included in standard MPI kits, but available separately as an add-on for owners of older kits. (Petrol Applications)

Fuel Injection Special Adaptors (x2)
Fiat / GM Quick-Connect

Included in standard MPI kits but available separately as an add-on for owners of older kits. (Petrol & Diesel Applications)

Fuel Injection Special Adaptors (x2)
Renault Plastic T-Connectors (10 / 12mm)
Included in standard MPI kits but available separately as an add-on for owners of older kits. (Petrol Applications)

• Fuel Pressure test kit containing three Schrader Test Port adaptors and flexible hose for ease of access

• Schrader test ports are the preferred method of measuring fuel pressure on vehicles with fuel rails.

• Quicker and easier than breaking into fuel lines

• Applications:

- 8mm Schrader valve connector - as fitted on some BMW, Ford, Mini, PSA, VAG and Volvo models

- 7/16 Schrader valve connector - as fitted on some Chrysler, Mercedes, Vauxhall and Opel models

- M8 Quick release Schrader valve connector - as fitted to Alfa Romeo, Fiat and new Ford Ka

Supplied in cardboard carton

Spare Parts:

• 31487100 - Multi-Point Fuel Pressure Test Gauge Assembly (10bar / 145psi)

• 31486370 - Double-ended QR Hose Assembly

• 31481870 - 7/16 Schrader valve connector

• 31481970 - 8mm Schrader valve connector

• 31485770 - M8 right angled Schrader valve connector

UPDATED KIT - Now includes 90 degree elbow to overcome access issues on certain models
• A specially designed Fuel Pressure Tester for the PD & FSi ranges of engines as used by VW Group
• 20bar Pressure Gauge – as both PD and FSi fuel pumps operate at higher pressures than normal fuel pumps
• Extra long hose assembly for ease of access – 600mm
• Includes special PD fuel pump quick connector (Diesel) and 2 x special FSi fuel pump connectors for 1.6, 1.8, 2.0 FSi engines with Bosch fuel pumps

Spare Parts:

• 31490170 - 20bar Pressure Gauge c/w 600mm hose assembly

• 31481470 - M12 male adaptor for PD fuel pump

• 31481870 - FSi adaptor (female)

• 31487870 - FSi adaptor (male)

• 31484670 - M12 x 1.5 Banjo Bolt Assembly

Piston Ring Compressor - Ratchet Action

• Medium capacity piston ring compressor suitable for cars and LCVs

• Spring assisted ratchet type lock complete with square drive key

• Standard 80mm depth, 57 - 125mm capacity

• Quickly and cleanly removes and prevents deposits on fuel injectors as well as loosening and dissolving carbon build-up in the air induction system, including the throttle plate, intake manifold and valves
• Enhances engine performance, improves fuel economy, reduces
maintenance and improves emissions
• Adjustable inlet pressure regulator for use on low and high pressure fuel
systems
• Pressure gauge (0-150 PSi) (0-10 bar)

• Contents:
- Fuel Injection Cleaner Assembly with pressure regulator, gauge, valves, fittings and 950ml canister
- 1.2m long connection hose
- 16 fuel injection system connectors
- Wall Mount Bracket
- User Manual

Spare Parts:
• MV5567-01 - Canister
• MV5567-02 - Pick-up Tube & Filter Assy
• MV5567-03 - Hook & Chain Assy
• MV5567-04 - Air Inlet & Valve Assy
• MV5567-05 - Pressure Regulator
• MV5567-06 - Replacement Gasket
• MV5567-07 - Relief Valve
• MV5567-08 - Pressure Gauge
• MV5567-09 - Outlet Valve Assy
• MV5567-10 - Wall Mount Bracket
• MV5567-11 - Connection Hose
Adaptors available individually on request

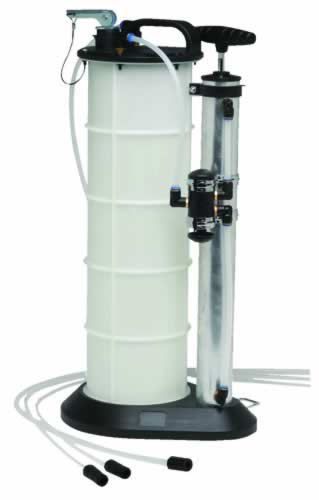

• For fluid evacuating AND dispensing
• Changes from evacuation to dispensing at the press of a button
• 9ltr capacity reservoir with stabilizer base
• Automatic shut-off prevents accidental over-filling
• Manual pump for mobility – no air or electric supply required
• Supplied with evacuation dipstick tubes and adaptors:
- 1.5mtr x 5.7mm diameter / 1.5mtr x 6.6mm diameter / 1.5mtr x 10mm diameter

• Special features:
- New improved gasket design ensures airtight seal for vacuum / pressure
- Self-locking retaining nuts ensure the lid remains securely clamped and won’t loosen allowing pressure / vacuum leaks
- Overflow shut-off valve with threaded connection so it remains securely in place
• Ideal for use dispensing and extracting:
- Engine Oil / Transmission Fluid / Gear Oil
- Brake Fluid / Power Steering Fluid / Coolant

• Set of 10 adaptors for topping-up sealed transmissions when fluid level is low
  o BMW, Ford, Honda, Mercedes, Nissan, Toyota, VAG, Volvo
• Quick-connect coupler system for connecting adaptors, with ball valve control
• For dispensing fluid, use with one of the following systems :- Use with Mityvac Hand Pump** and Mityvac MV6010 Fluid Dispensing Kit or use with Mityvac MV7201 Fluid Evacuator Plus

Note : ** if using Mityvac Hand Pump, it will require to be a version with Pressure mode available

Kit Contents:
o Angled ATF refill adaptor for BMW, Honda, Nissan
o Ford straight ATF refill adaptor
o Toyota threaded ATF refill adaptor
o VW short angled ATF refill adaptor
o VW long angled ATF refill adaptor
o VW straight ATF refill adaptor
o VW / Audi threaded ATF refill adaptor ( DSG transmission )
o VW / Audi threaded ATF refill adaptor ( CVT transmission )
o Mercedes threaded ATF refill adaptor
o Volvo threaded ATF refill adaptor
o MV7210 refill hose assembly c/w quick-connect coupler and control valve

• Ideal for brake bleeding and basic diagnostic checks requiring vacuum
• Lightweight, non-corrosive and chemical resistant pump

• Kit contents:
  - Selectline PVC Hand Vacuum Pump
  - 135ml Fluid Reservoir with transfer lid
  - Selection of breed screw adaptors & manifold plugs
  - Tubing & Tube Connectors

• Pump with gauge only

• Pressure Hand Pump to 4bar
• Pump with gauge only

• Ideal for a wide variety of workshop tasks requiring vacuum
and / or pressure featuring a dual convertor to switch from vacuum to pressure
• Ideal for a wide variety of diagnostic tests which require a pressure source
- e.g. EVAP sensors, Cooling system leak tests etc
• Ideal for a wide variety of workshop tasks requiring vacuum and / or pressure
- e.g. Diagnostics, brake bleeding, fluid transfer, evacuation, sampling etc

• Contents:
- Silverline Die-Cast Aluminium Vacuum & Pressure Pump to 4bar (60psi) pressure
- Large 480ml Fluid Reservoir with quick connection to pump
- Selection of 12 vacuum caps
- Diagnostic / Brake Bleeding Adaptor kit
- Tubing and Tube Connectors

Spare Parts:
• MV8550-01 - Vacuum/Pressure Manometer
• MV8550-02 - 2 x Tubes (600mm)
• MV8550-03 - Reservoir Kit
• MV8550-04 - Tube Connectors
• MV8550-05 - Vacuum Caps
• MV8550-06 - Brake Bleeding Adaptors
• MV8550-07 - Test Adaptors Kit
• MV8550-08 - Repair Kit
• MV8550-09 - Vacuum/Pressure Pump
• MV8550-10 - Fluid Reservoir Kit
• MV8550-11 - Filter Priming Adaptors Kit

• Available as an optional extra for MV5567
• Extends the applications of the Mityvac Fuel Injection Cleaner to include air
induction cleaning. The MVA550 connects to the Cleaner and sprays a fine
mist of decarbonising solution into the air induction system or onto a targeted area such as the throttle plate

Features
- Snap-in, push-button release style connection to Cleaner hose
- Durable nickel-plated brass components
- High-quality leak-proof design
