Ram Extension 100mm (4")


See Downloads section for Kit Contents List

Puller Leg 150mm Working Dimensions
215mm Long

Puller Leg 200mm Working Dimensions
265mm Long

See Downloads section for Kit Contents List

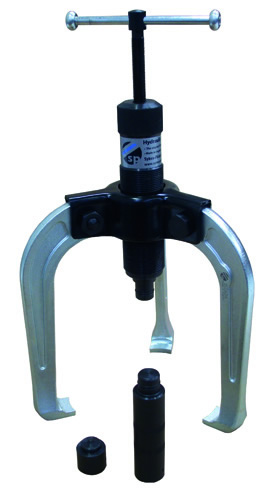

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Triple Head Assembly or Sliding Beam
1 x Ram Extension
3 x Legs

Self centering and self locking.
Redesigned legs, improving strength.
Supplied in carton.

Specifications
Puller Spread Min - Max: 50 - 100mm
Puller Reach Max: 100mm
Ram Extension: 50mm

Hydraulic 1500 series

• Makes 3 different twin/triple leg pullers.
• Supplied in metal case.

Puller Spread Min - Max: 75 - 150mm
Puller Reach Max: 150mm
Ram Extension: 50 /100mm


Contents:
15000000 1 x Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension - 50mm
15262400 1 x Ram Extension - 100mm
15242400 3 x Leg - 100mm
15262600 3 x Leg - 150mm

Hydraulic 1500 series

• Makes 4 different twin/triple leg pullers, plus bearing separator kit.
• Supplied in lockable metal case.

Puller Spread Min - Max: 50-150mm
Puller Reach Max: 150mm
External Spread Min - Max: 20-105mm
External Reach Max: 876mm

Contents:
15000000 1 Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension - 50mm
15262400 1 x Ram Extension - 100mm
15242400 3 x Legs - 100mm
15262600 3 x Legs - 150mm
19311200 1 x Twin Beam
09510000 1 x Separator 20-105mm
09311500 2 x Main Rods
09311900 4 x Extension Rods
09312300 2 x Extension Rods 5 inch



Contents:
1 x 10 Tonne Hydraulic Ram
3 x 4 Legs 6 Legs & 8 Legs
1 x 20 - 105mm Separator
1 x Twin Head
1 x Triple Head
1 x Nut1 x Beam
2 x Main Rod
2 x Extension Rod
1 x Centre Adaptor
2 x Centre Extenders
Includes tough carry case

10 TON HYD/RAM (ATB1067)

High Quality, strong, sturdy 10 tonne hydraulic puller kit
Suitable for agricultural machinery, professional garage and home mechanics use
10 tonne hydraulic ram with Tommy bar
Ideal for pulling or splitting hubs, flanges, gears and bearings
Long lasting and durable construction for a long service life

Kit includes:
1 x Hydraulic ram 7.5 - 10 tonne
1 x Hydraulic ram centre bar
1 x 50mm ram extension
1 x 100mm ram extension
3 x 4" puller ram
3 x 6" puller ram
3 x 8" puller ram
1 x Triple head for puller
1 x Twin head
1 x Grooved centre nut
1 x Head for puller
1 x Pulling device with nut for device
2 x Pulling bolt extension
1 x 4" Separator
1 x Plastic storage box

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Twin Head Assembly or Sliding Beam
1 x Ram Extension
2 x Legs

• Self centering and self locking.
• Redesigned legs, improving strength.
• Supplied in carton.

Puller Spread: 50 - 100mm
Puller Reach Max: 100mm
Ram Extension: 50mm

Twin Head (with centre nut)
1½” Dia. Internal

See Downloads section for Kit Contents List

Hydraulic Pullers - Ram Extension 50mm (2")

See Downloads section for Kit Contents List

Puller Leg - 100mm (4") Working Dimensions
165mm Long

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Twin Head Assembly or Sliding Beam
1 x Ram Extension
2 x Legs

Self centering and self locking.
Redesigned legs, improving strength.
Supplied in carton.

Puller Spread: 75 - 150mm
Puller Reach Max: 150mm
Ram Extension: 100mm

Ram Extension 150mm


See Downloads section for Kit Contents List

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Twin Head Assembly or Sliding Beam
1 x Ram Extension
2 x Legs

Self centering and self locking.
Redesigned legs, improving strength.
Supplied in carton.

Puller Spread: 100 - 200mm
Puller Reach Max: 200mm
Ram Extension: 150mm

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Twin Head Assembly or Sliding Beam
1 x Ram Extension
2 x Legs

Self centering and self locking.
Redesigned legs, improving strength.
Supplied in carton.

Puller Spread: 130 - 250mm
Puller Reach Max: 250mm
Ram Extension: 150mm

Puller Leg 250mm Working Dimensions - Wide Spread
300mm long


See Downloads section for Kit Contents List

Hydraulic 1500 series

• Combination twin/triple leg puller kits complete with ram extensions, offer a wide range of pulling options.
• Makes 2 different twin/triple leg pullers.
• Wide range of kits to suit most applications.
• Supplied in carton.

Puller Spread Min - Max: 50 - 100mm
Puller Reach Max: 100mm
Ram Extension: 50mm


15000000 1 x Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension - 50mm
15242400 3 x Leg - 100mm

1500 Series - Triple Head for Hydraulic Three Leg Pullers
1½” Dia. Internal

See Downloads section for Kit Contents List



Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Triple Head Assembly or Sliding Beam
1 x Ram Extension
3 x Legs

Self centering and self locking.
Redesigned legs, improving strength.
Supplied in carton.

Specifications
Puller Spread Min - Max: 75 - 150mm
Puller Reach Max: 150mm
Ram Extension: 100mm

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Triple Head Assembly or Sliding Beam
1 x Ram Extension
3 x Legs

Self centering and self locking.
Redesigned legs, improving strength.
Supplied in carton.

Specifications
Puller Spread Min - Max: 100 - 200mm
Puller Reach Max: 200mm
Ram Extension: 150mm

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Triple Head Assembly or Sliding Beam
1 x Ram Extension
3 x Legs

Self centering and self locking.
Redesigned legs, improving strength.
Supplied in carton.

Specifications
Puller Spread Min - Max: 130 - 250mm
Puller Reach Max: 250mm
Ram Extension: 150mm

Hydraulic 1500 series

Makes 3 different twin/triple leg pullers.
Supplied in carton.

Puller Spread Min - Max: 75 - 150mm
Puller Reach Max: 150mm
Ram Extension: 50 /100mm


Contents:
15000000 1 x Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension - 50mm
15262400 1 x Ram Extension - 100mm
15242400 3 x Leg - 100mm
15262600 3 x Leg - 150mm

Hydraulic 1500 series

• Makes 6 different twin/triple leg pullers.
• Supplied in metal case

Puller Spread Min - Max: 50 - 200mm
Puller Reach Max: 200mm
Ram Extension: 50 /100mm

Contents:
15000000 1 x Hydraulic Ram with Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension - 50mm
15262400 1 x Ram Extension - 100mm
15242400 3 x Legs - 100mm
15262600 3 x Legs - 150mm
15282800 3 x Legs - 200mm

• Makes 8 different twin / triple leg pullers
• Supplied with metal storage display panel (610 x 457mm)

Puller Spread Min - Max: 50 - 250mm
Puller Reach Max: 250mm
Ram Extension: 50 / 100 / 150mm

15000000 1 x Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension - 50mm
15262400 1 x Ram Extension - 100mm
15272600 1 x Ram Extension - 150mm
15242400 3 x Legs - 100mm
15262600 3 x Legs - 150mm
15282800 3 x Legs - 200mm
15292900 3 x Legs - 250mm (Extra Wide)
15512800 1 x Metal Panel
15512900 1 x Hook Kit

Hydraulic 1500 series

• For removing bearings, gears etc. where access behind components is too restricted to use standard pullers.
• Drop forged, high quality steel, heat treated for strength and durability.
• Separators have tapered edge for insertion behind close fitting bearings, gears etc.
• Internal puller has screw adjustable legs for positive fit.
• Supplied in metal case

External Spread Min - Max: 35-140mm
Internal Spread Min - Max: 40-150mm
External Reach Max: 863mm

Contents:
15000000 1 x Hydraulic Ram With Nose Piece
15272600 1 x Ram Extension - 150mm
19321200 1 x Beam
09520000 1 x Separator 35-145mm
09321500 2 x Main Rods
09321900 4 x Extension Rods
09322300 2 x Extension Rods 5 inch
09350000 1 x Internal Race Extractor
09311100 1 x Forcing Screw C/W Nut
09312100 1 x Thrust Race
09312200 1 x Convertor
09322000 2 x Protectors

Hydraulic presses for pullers

Two-leg hydraulic puller

Hydraulic screw for pullers 1580/8I and 1585/5I - 1585/6I - 1585/7I

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets.
• Wide range of automotive and industrial applications.
• Powered by 1500 series hydraulic ram.
• Safe and easy to use.
• 8 tonnes of force with minimum effort.
• Easy to adjust.
• Non-twisting for improved stability.
• Supplied with nose piece for use on centred shafts.

Contains:
1 x Hydraulic Ram
1 x Twin Head Assembly or Sliding Beam
1 x Ram Extension
2 x Legs

Thin jaws enable access where clearance behind components is limited.
Supplied in carton.

Puller Spread: 50 - 150mm
Puller Reach Max: 150mm
Ram Extension: 50mm

Twin Beam
290mm long
1½” Dia. Internal

See Downloads section for Kit Contents List


Twin Beam
290mm Long
1½” Dia. Internal


See Downloads section for Kit Contents List

Three-leg pullers for hydraulic use

Legs for hydraulic puller 1585/I-1585/6I-1585/7I

Extension sockets for hydraulic screw
